Wine glass racks, and what actually mounts to a cart

Hanging stemware upside down under a shelf is the single best use of space on a bar cart. Glasses are the worst thing on a cart by area — a coupe is nearly four inches across and holds nothing until it is filled — so moving them off the shelf frees more room than moving anything else.

There is a catch, and it is the first thing this page has to say rather than the last: every rack here screws into the underside of the shelf above it. That is fine on wood or engineered board. It is impossible on tempered glass, mirrored glass and acrylic — which, between them, is most of this category.

So the honest structure is two answers. If your cart has board or wood shelves, the GeLive 10-inch pair is the pick. If it has glass, no rack on this page will work and the answer is a cart with holders already built in, which is covered further down.

Check this before you buy anything

What is the shelf made of? A screw needs material to bite into. Wood, plywood, MDF and particleboard all take a short screw; glass, mirror and acrylic do not, and drilling any of them at home ends the shelf.

How thick is it? The screws supplied with these racks are short, which is deliberate — they must not come through the top surface. On a thin board shelf, measure and, if in doubt, shorten the screw rather than the shelf.

What is the rated load, and is it per shelf? Four stemmed glasses is a pound or so, which sounds trivial — but it hangs from the shelf rather than sitting on it, and a rated figure assumes weight on top. On the lightly rated carts this site keeps finding, that distinction is worth a thought; ratings are explained on bar cart weight capacity.

How deep is the shelf? A rack 8.8 inches deep needs a shelf at least that deep to mount under. Several carts on this site are 9.4 to 11.2 inches deep, which rules out the wider racks entirely.

The four, and who each is for

The pick (GeLive 10-inch, 2-pack). 10.2 by 4 inches, two per pack, each holding three to four glasses with bases between 0.9 and 3.8 inches — a published base range, which most racks leave out. The narrow footprint is why it wins: at 4 inches deep it fits under a cart shelf that a full-width rack would overhang, and having two means both ends of a shelf can carry glasses. Against it: three to four glasses each is a modest capacity, the painted iron chips where a base is dragged across it, and it still needs screws.

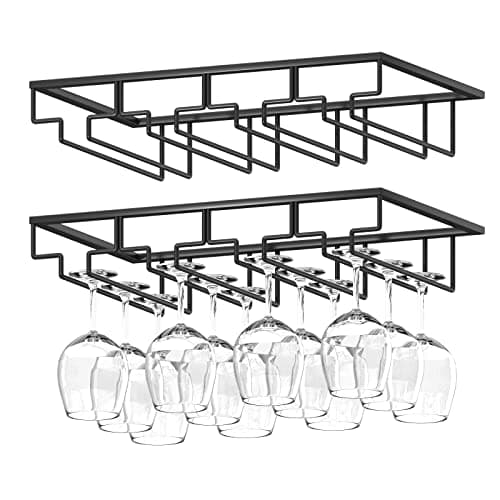

The widest mouth (Wtiujhg 4-row, 2-pack). 15.7 inches long with four rows and a 2.2-inch opening, sold in pairs. The wide mouth is the useful feature: it takes mixed stemware rather than one base size, which is what a real cart holds — a couple of coupes, a couple of Nick and Noras, a wine glass. At 15.7 inches it is longer than several cart shelves on this site are wide, it publishes no per-rack glass count, and glass shelves are still out.

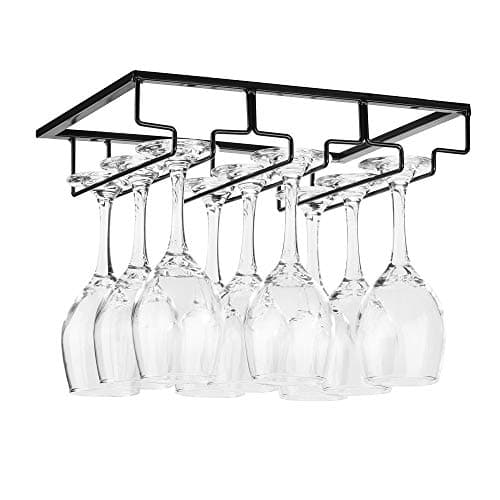

The highest capacity (FOMANSH). 11.8 by 9 inches holding six to nine glasses depending on their bases — the most capacity here by a clear margin, and enough to clear an entire glassware collection off a shelf. It needs 9 inches of shelf depth to mount under, which several carts here do not have; its stock has been intermittent; and it is the rack most likely to be wider than the cart it is going on.

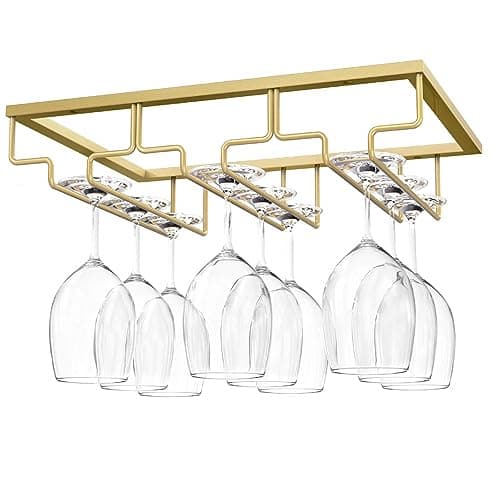

The one that matches (Nuovoware 3-row, gold). Three rows in gold-finished iron, taking bases between 4 and 9 cm. It is here because stemware racks come almost exclusively in black or chrome, and on a gold or brass cart those look like kitchen hardware that wandered in. A painted gold will not match a plated gold frame exactly, 8.86 inches of depth is demanding, and it is a single rack rather than a pair.

If your cart has glass shelves

Three options, in order of how well they work.

Buy a cart with holders built in. Several carts on this site ship with stemware rails as part of the frame, which is a welded or bolted fixing rather than a screw into a shelf. The wine-rack roundup compiles the ones that carry glasses as well as bottles, and the Aubtik AU-BC208-W publishes racks for nine glasses, which is more than any rack on this page manages.

Hang them from the frame, not the shelf. On carts with a tubular frame, S-hooks over the rail will carry a few glasses by the foot. It is not elegant and it only works where the frame runs at the right height, but it costs almost nothing and drills nothing.

Store them upright and accept the area. On a glass shelf, upright storage is safer than it sounds — the usual argument for inverting glasses is dust, and a cart in a used room does not collect much. The full comparison of the three storage methods is on how to store glasses on a bar cart.

Fitting one without ruining the shelf

Assuming the shelf is board or wood, the installation is ten minutes and there are four things worth getting right.

Measure the screw against the shelf thickness. The screws supplied are short because they must not come through the top surface, where you would find them with a bottle. Hold one against the shelf edge before you drive it, and if it is longer than the board is thick, shorten it or buy shorter.

Drill a pilot hole in engineered board. MDF and particleboard split and crumble when a screw is driven in dry, and a crumbled hole will not hold weight. A pilot hole slightly narrower than the screw shank is the difference between a rack that holds for years and one that sags in a month.

Mount toward the front edge. A rack at the back of a shelf means reaching over the bottles with a glass in your hand. Toward the front, the glasses come out without crossing anything — and on a cart, the front edge is also where the shelf is most accessible from a chair.

Load it with the glasses you actually use. A rack holding four coupes that get used twice a year is worse than no rack, because it is occupying the underside of the shelf you reach into most. Hang the working set; the rest belongs in a cupboard, for the reasons set out on how to store glasses on a bar cart.

What it costs in headroom

The trade nobody mentions: a rack plus a hanging glass eats vertical space in the gap below, and on a three-tier cart there was not much to begin with.

A rack is roughly an inch and a half deep, and a stemmed glass hanging from it adds another six or so. That is seven and a half inches of the gap gone — and on the carts this site keeps measuring, the gap between lower shelves is often eight to nine inches in total. Hang glasses there and nothing else fits underneath.

There is a load question too, and it is smaller than people fear. Four stemmed glasses is roughly a pound — trivial against any published rating on this site. But it hangs rather than rests, so it pulls on a few short screws in board rather than pressing down on a supported panel. That is an argument for pilot holes and the front edge, not for worrying about the rating.

Which is why a rack belongs under the top shelf of a two-tier cart, or under the top shelf of a three-tier one, where the space below is the full height of the cart rather than a shelf gap. The arithmetic for your own cart is on the shelf-gap page.

How much space a rack actually saves

Worth quantifying, because it is the reason to go to this trouble.

A stemmed glass takes roughly three inches of width standing on a shelf, with a little clearance so it can be picked up without knocking its neighbor. Four glasses is about a foot of shelf — half of a 24-inch cart shelf, gone, on objects that hold nothing until someone pours into them.

Hang the same four under the shelf above and that foot comes back for bottles, a tray, an ice bucket. On a two-tier cart where the top shelf is the working surface, it is close to a 50 percent increase in usable area — which no other twenty-dollar purchase on this site delivers.

Before you order

Establish the shelf material first: board or wood, buy a rack; glass, mirror or acrylic, buy a cart with holders instead. Then measure the shelf depth and keep the rack at least an inch shallower, and check the base diameter of the glasses you actually own against the rack's published range.

If the shelf turns out to be glass after all, stop there and read the section above rather than improvising — a drill is not the answer.

And mount it toward the front of the shelf rather than the back. A rack at the back means reaching over bottles with a hand holding a glass, which is how stemware gets broken — the same reasoning that decides where everything else on a cart lives, on what to put on a bar cart.
